Industry Overview
Cement production is a highly energy-intensive process involving raw material crushing, pyroprocessing (preheating, calcining, sintering in rotary kilns), and finish grinding. Every stage exposes equipment to extreme conditions: abrasive raw meal, molten clinker at 1,400°C, and high-pressure grinding loads. The combination of high temperature, thermal shock, and abrasive wear makes cement one of the most demanding industries for wear parts.
Zhili's cement industry solutions cover the full production chain — from raw material preparation through pyroprocessing to finish grinding. With over 30 years of metallurgical expertise, we provide heat-resistant alloys for kiln systems, high-wear materials for crushing and grinding, and precision components that maximize kiln uptime and minimize maintenance costs.
Related Products for Cement Industry
Clinker Crusher Hammers
High-temperature resistant alloy hammers designed for cement clinker crushing. Engineered to withstand 300-400°C operating temperatures with superior thermal shock resistance.
VRM Grinding Table & Liners
Vertical roller mill grinding tables and mill liners with heat-resistant alloy surfaces for cement meal grinding. Optimized for high-pressure roller loads and abrasive wear.
Grinding Roller / Extrusion Roller
VRM grinding rollers with high-chromium overlay or ceramic composite surfaces. Designed for cement and slag grinding with 20,000+ hour service life in typical operations.
Preheater Spare Parts
Preheater hanging flaps, distributing plates, and dip tubes operating at 900-1,100°C. Made from premium heat-resistant alloy steels (ZG40Cr25Ni20, ZG35Cr26Ni12).
Rotary Kiln Spare Parts
Kiln tires, riding rings, kiln chain systems, and kiln guard plates for cement rotary kilns. Precision machined for perfect fit and alignment.
Grate Cooler Plates
Cooling grate plates and cross bar cooler components for cement clinker cooling. Heat-resistant alloy construction with optimized cooling geometry.
Core Material System for Cement Industry
For preheater components, rotary kiln internals, and grate cooler parts, Zhili uses ZG40Cr25Ni20 and ZG35Cr26Ni12 heat-resistant alloys. These materials maintain mechanical integrity at continuous temperatures up to 1,100°C through a stable austenitic matrix strengthened by M₂₃C₆ carbide precipitates.
| Grade | ZG40Cr25Ni20 / ZG35Cr26Ni12 |
| Max Operating Temp | ≤ 1,100°C (ZG40Cr25Ni20) |
| Room Temp Hardness | HRC 25-35 (as-cast) |
| Oxidation Resistance | ≤ 1,150°C in air |
| Application | Preheater flaps, kiln chains, cooler parts |
For clinker crusher hammers and grinding table surfaces, a Cr-Mo-V alloy system is optimized for the unique combination of 300-400°C material temperatures and high impact/abrasive wear. Zhili's proprietary HT-HC alloy maintains HRC 48-55 at 400°C with excellent thermal fatigue resistance.
| Grade | HT-HC (Zhili Proprietary) |
| Room Temp Hardness | HRC 52-58 |
| Hardness at 400°C | > 80% retention (HRC 42+) |
| Thermal Fatigue Cycles | > 5,000 cycles (850°C water quench) |
| Application | Clinker hammers, VRM table overlays |
For grinding rollers and table segments, Zhili applies multi-layer chromium carbide (CrC) hardfacing using submerged arc welding (SAW) or gas-shielded flux-cored arc welding (FCAW). Up to 6 layers ensure deep substrate penetration and a dense, crack-free overlay with 60+ HRC surface hardness.
| Overlay Hardness | HRC 58-65 |
| Overlay Thickness | 8-25 mm per pass |
| Carbide Type | Cr₇C₃ + NbC composite |
| Application | VRM rollers, table segments, chute liners |
Ball mill diaphragms and separator components require a balance of wear resistance and air flow optimization. Zhili manufactures diaphragms with segmented, prefabricated wear plates that can be replaced individually, reducing maintenance time by 70% compared to one-piece designs.
| Wear Plate Material | High-chromium cast iron (HRC 56-62) |
| Structure | Segmented, individually replaceable |
| Air Flow Optimization | CFD-optimized slot geometry |
| Application | Ball mill diaphragms, separator wear plates |
Typical Application Scenarios

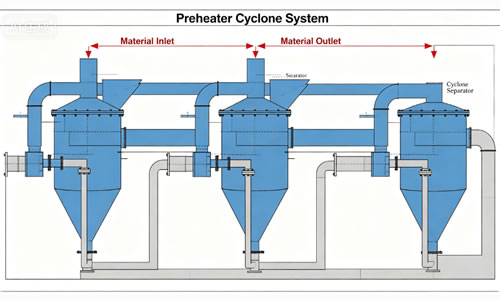

Preheater Cyclone System
Hanging flaps, distributor plates, and dip tubes operate at 850-1,100°C in the cyclone preheater tower. Cyclone blockage from material adhesion and gas erosion are primary failure modes.
Ni-Resist Alloys · ≤1100°C

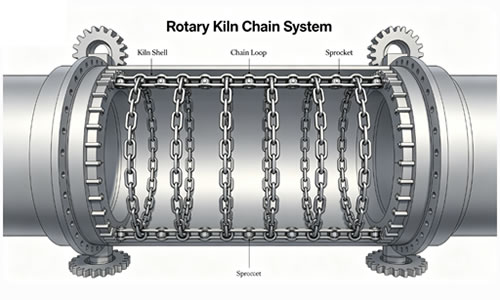

Rotary Kiln Chain System
Kiln chains and lifting bars promote heat transfer between material and gas. Operating in a highly abrasive, high-temperature environment with cyclic thermal stresses causes chain elongation and link wear.
Kiln Chain · Heat-Resistant Steel

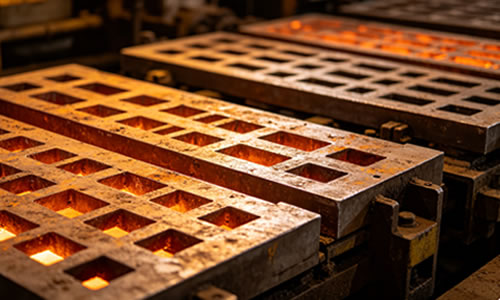

Clinker Cooler Grates
Grate cooler plates cool clinker from 1,400°C to below 100°C through forced air. Thermal shock, high-temperature oxidation, and abrasive particle impingement cause rapid wear on the plate surfaces.
Grate Cooler Plates · Heat-Resistant Alloy

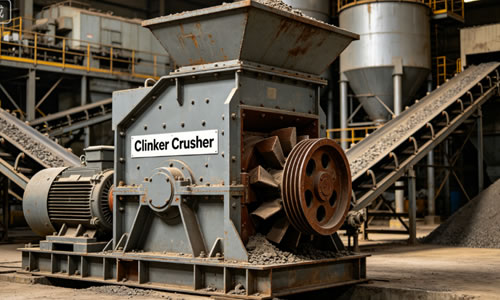

Clinker Crusher
Hammer crushers break hot clinker (100-400°C) discharged from the cooler. Clinker hammers face simultaneous high-temperature oxidation, thermal cycling, impact, and abrasive wear — the most demanding crushing application in cement.
Clinker Hammers · HT-HC Alloy

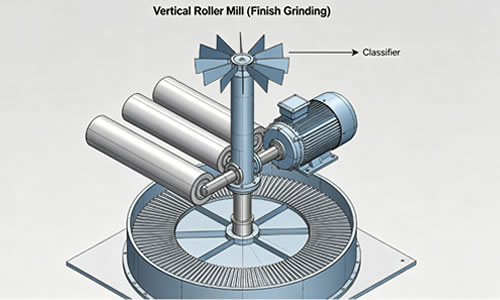

Vertical Roller Mill (Finish Grinding)
VRM grinding cement clinker and slag at high pressure. The grinding table and rollers experience high-pressure point loading, particle abrasion, and temperatures up to 150-200°C at the roller-material interface.
VRM Table & Rollers · CrC Overlay

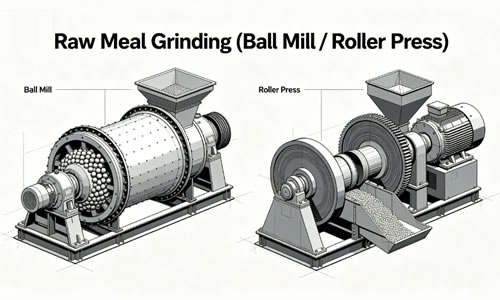

Raw Meal Grinding (Ball Mill / Roller Press)
Abrasive raw meal (SiO₂, Al₂O₃, Fe₂O₃) grinding with high silica content. Roller press studs and ball mill liners face severe three-body abrasion requiring maximum wear-resistant surfaces.
Roller Press Studs · High-Chromium OverlayMaterial Solution Comparison
| Application | Temperature | Zhili Material | vs. OEM Standard | Typical Life Extension |
|---|---|---|---|---|
| Clinker Crusher Hammers | 300-400°C | HT-HC Alloy | High-Mn steel | 3-4× longer |
| Preheater Hanging Flaps | 850-1,100°C | ZG40Cr25Ni20 | Mild steel | 5-8× longer |
| VRM Grinding Rollers | 150-200°C | CrC Overlay | Bimetal overlay | 2-3× longer |
| Grate Cooler Plates | 100-900°C thermal gradient | Heat-resistant alloy | Cast steel | 3-5× longer |
| Kiln Chain | 800-1,200°C | Heat-resistant alloy + surfacing | Carbon steel chain | 4-6× longer |
| Ball Mill Diaphragm | Ambient + abrasion | Segmented HCrCI plates | Solid Mn steel | 2-3× longer |
Successful Cases
Clinker Crusher Hammers — 5,000 tpd Production Line
Preheater Hanging Flaps — 10,000 tpd Line 4
VRM Grinding Rollers — 6,000 hp Finish Grinding
Grate Cooler Plates — 3,000 tpd Kiln Line
