Crusher Hammer Heads

Global Sales  OEM Tailor Design

Product Specifications

Product NameHammer crusher hammers
Production ProcessCasting
Applicable MachinesClinker crusher, raw material crusher, auxiliary material crusher, metal crusher, etc.
Applicable IndustriesCement, stone, coal, steel, metal recycling, metal mining,power,etc.
Material TypesHigh manganese steel, high manganese steel insert alloy bars, high manganese steel + hardfacing,bimetal composite, high chromium cast iron, Ceramic Composite Matrix Reinforcement, medium alloy steel,ceramic composite, etc.
Adaptable materialsgranite, basalt, limestone, river pebbles, cement clinker, quartz stone, iron ore, bauxite, salt, brick, coal, metal mines,etc.

Our Services

  1. Before sales, we will fully understand the customer's working conditions and recommend the most appropriate material selection to the customer.

  2. Provide customers with drawings based on their machine models, spare parts dimensions, etc.

  3. After sales, we will continue to pay attention to the usage of the product and provide timely help.

  4. Ensure that the quality of the purchased components is impeccable, and the technical parameters absolutely meet national standards.

  5. Provide free quotation, worldwide sales, short delivery cycle, low price.

If you need detailed technical information of the product or cannot find the product you need on the website, please email us(cnwearparts@lyzhili.com), because we are a customized factory for crusher spare parts.

Product Overview

Custom crusher hammer heads in high manganese steel, bimetal composite & high chromium iron. Suitable for cement, mining & metal recycling. Free quote from Zhili.

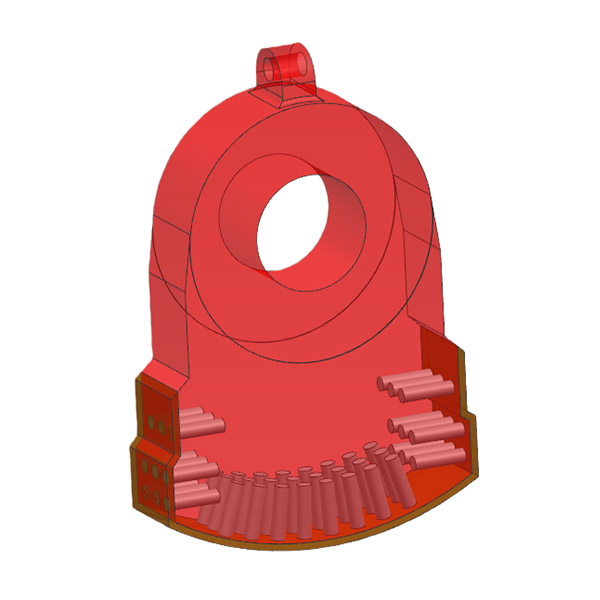

The materials of high manganese steel hammer heads include Mn13Cr2, Mn18Cr2, Mn13 or Mn18 insert tungsten-molybdenum alloy bars and surface surfacing wear-resistant alloys.

When the high manganese material bear large impact force from Stone, its surface hardening quickly and forms the wear resistance surface layer. The insert hard alloy rod had good performance anti-friction ,hardness & toughness

Features: Good toughness, good manufacturability, low price, but the overall performance of the crusher requirements are higher.

Applicable working conditions: Suitable for cement plant,metal recycling,stone factories and other rocky places with poor conditions.

Crusher Hammer Heads 01Crusher Hammer Heads 02


 Chemical component

GradeChemical Component %
CSiMnCrSP
ZG120Mn131.05~1.350.3~0.911~14-≤0.06≤0.04
ZG120Mn13Cr21.05~1.350.3~0.911~141.5~2.5≤0.06≤0.04
ZG120Mn17Cr21.05~1.350.3~0.916~191.5~2.5≤0.06≤0.04
1: Allowed to add microscale V, Ti, B and Re etc.
2: We can produce the other grade high manganese steel hammer according to customers' requirements.



 Mechanical Property

GradeStretch PropertyHardness
HB
Yield Strength ReH/MPaTensile Strength Rm/MPaElongation at Cross Section %Shock Absorption Energy Ku2/J
ZG120Mn13-≥685≥25≥118≤300
ZG120Mn13Cr2≥390≥735≥20-≤300

The working part of the hammer head is made of high-wear-resistant high-chromium cast iron, and the handle is made of high-toughness alloy steel.

Features: High wear resistance

Applicable working conditions: Limestone, cement clinker, iron ore, sandstone, coal gangue, basalt and other hard stone crushing fields.

Working principle: The motor drives the rotor to rotate at high speed in the crushing chamber. The hammer is the main wear part, and the quality of the hammer directly affects the crushing efficiency of the crusher. During operation, the hammer is not only hit, but also impacted by the material. If it is used repeatedly for a long time, the working surface of the hammer will be damaged and the surface shape will change.

Crusher Hammers


We use proper alloying and and related technological measures to make High chromium iron hammers’ surface hardness reaches more than 58HRC ,  during the process of wearing will maintain high hardness and high wear resistance.

Applicable working conditions: Suitable for making wearable spare parts with lower impact load and simpler shape.


High Chromium Iron HammersHigh Chromium Iron Hammers

Chemical component


Grade
 Chemical component%
CSiMnCrMoNiCuSP
BTMCr152.0~3.3≤1.2≤2.014~18≤3.0≤2.5≤1.2≤0.06≤0.10
BTMCr202.0~3.3≤1.2≤2.018~23≤3.0≤2.5≤1.2≤0.06≤0.10
BTMCr262.0~3.3≤1.2≤2.023~30≤3.0≤2.5≤2.0≤0.06≤0.10
1:Allowed to add microscale V,Ti,Nb,B and Re etc.
2:We will choose grade and specific component according to blow bars’ weight ,thickness and sizes

 Mechanical Property


Grade
 Surface Hardness

Casting condition

Harded condition

Softening annealing condition
HRCHBHRCHBHRCHB
BTMCr15≥46≥450≥58≥650≥41400
BTMCr20≥46≥450≥58≥650≥41400
BTMCr26≥46≥450≥58≥650≥41400

Material Options

High Manganese Steel (ZGMn13)

Standard wear-resistant material with excellent impact resistance and work hardening properties.

High Mn Steel + Alloy Bars

Enhanced wear resistance with embedded alloy bars for superior performance in high-abrasion conditions.

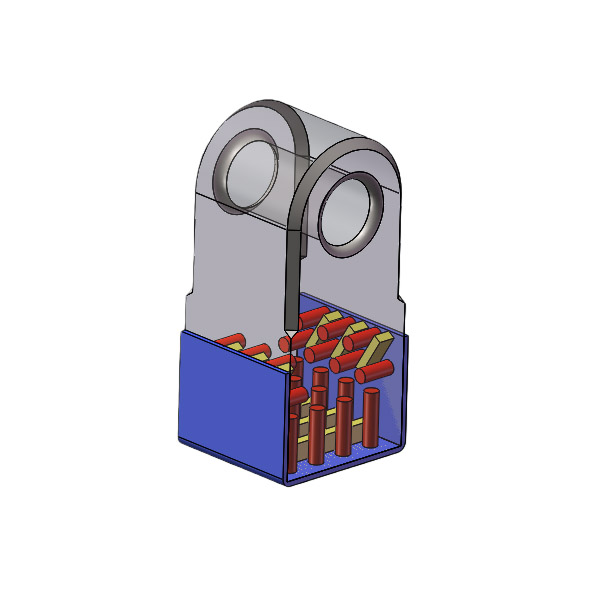

Ceramic Composite Matrix

Advanced ceramic composite matrix reinforcement technology for extended service life.

Bimetal Composite

Bimetal composite structure combining wear-resistant surface with tough core material.

High Chromium Cast Iron

Excellent wear resistance with good hardness retention at elevated temperatures.

Hardfacing Overlay Welding

Rebuilding and reinforcement using advanced hardfacing welding technology.

Related Products

Customized Solutions

Customized according to your operating conditions

High-wear working conditions

For highly abrasive materials such as limestone and sandstone, we adopt high-chromium cast iron or ceramic composite materials, which extend the service life by 3 to 5 times.

High-impact working conditions

For high-impact materials like construction waste and metal ores, we adopt a reinforced structure with high manganese steel and alloy bars, delivering excellent impact resistance.

High-temperature working conditions

For high-temperature materials including cement clinker and slag, special heat treatment is adopted to retain hardness and wear resistance at elevated temperatures.
